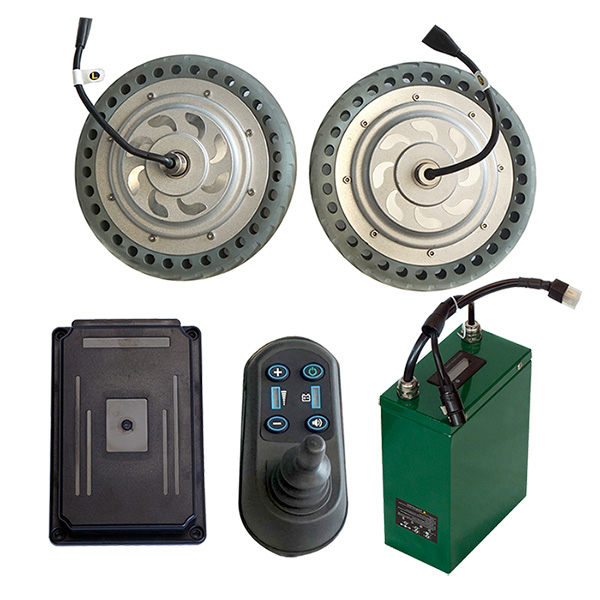

EZ Wheel Conversion Kit

Specifications

Motor Type:Brushless & Gearless hub motor

Rated Power:180W*2

Brake:Electromagnetic brake, with manual release handle

Tire:8", grey color, shock absorbing

Controller:Sine wave control, programmable

Joystick:5 speed settings, LED battery power indicator

Max Load:120kg

Gradeability:≥8°

Battery (optional):LiFePO4 24V10Ah

Charger (optional):Input 100-240VAC 1.5A, Output 29.2VDC 2A

Travel distance:Up to 22km with 24V10Ah battery (might vary due to different user weight and road condition)

Unbeatable Features:

Easy Installation

Anyone can DIY with our manual and video.

Wide Compatibility

Compatible to most manual wheelchairs on the market. No matter it's with rigid frame or folding frame. No matter it's with rear wheel of any size from 8" to 24".

Advanced Joystick Controller

360° easy operation, just push joystick by finger to any direction you want to go. Sine wave control, drive more smoothly. 5 speed settings, drive at your favorite speed. Programmable, set your favorite parameters. With USB charging port, charge your phone or tablet while driving. Joystick can be fitted on left or right side as you prefer.

Safe & Reliable Battery

LiFePO4 cells, lifetime is over 2000 cycles. With much better thermal stability and safety characteristics than ordinary Li-ion batteries.

Packing Information

Net weight: kgs
Gross weight: kgs
Packing size: cm
Warranty Period: 1 year
